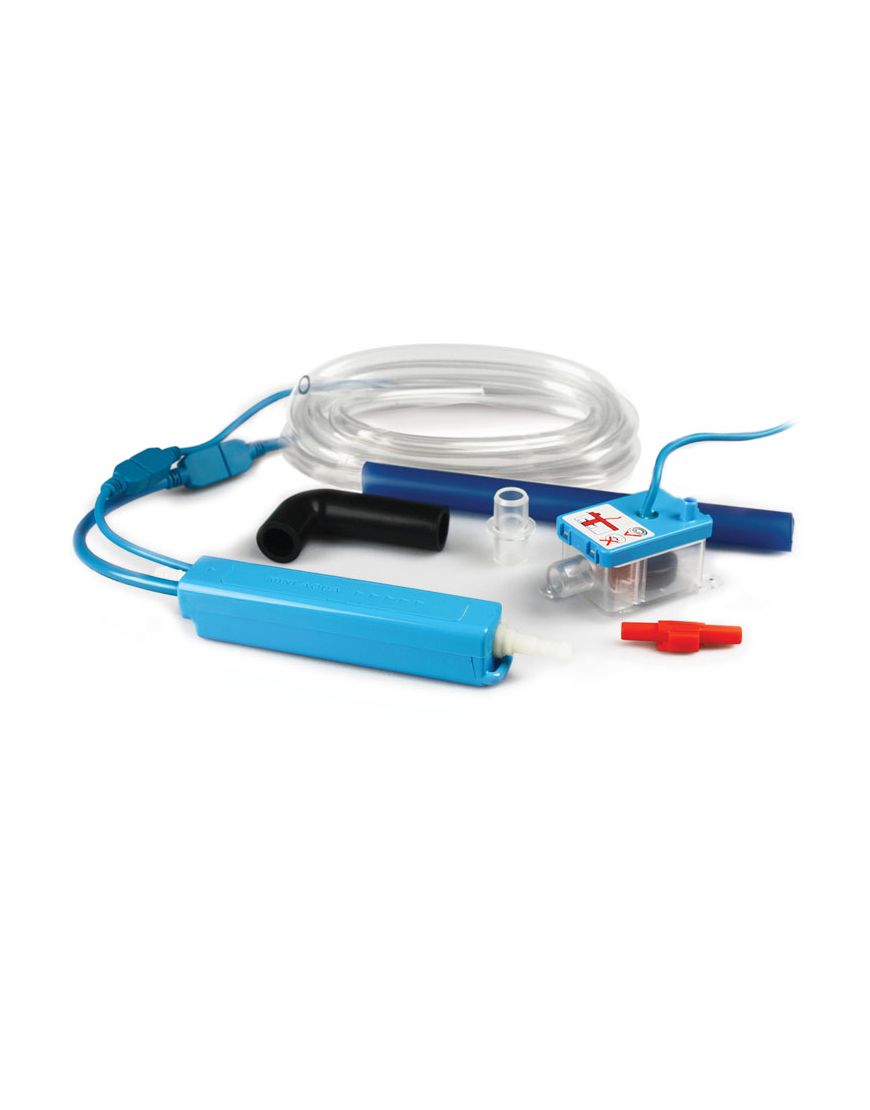

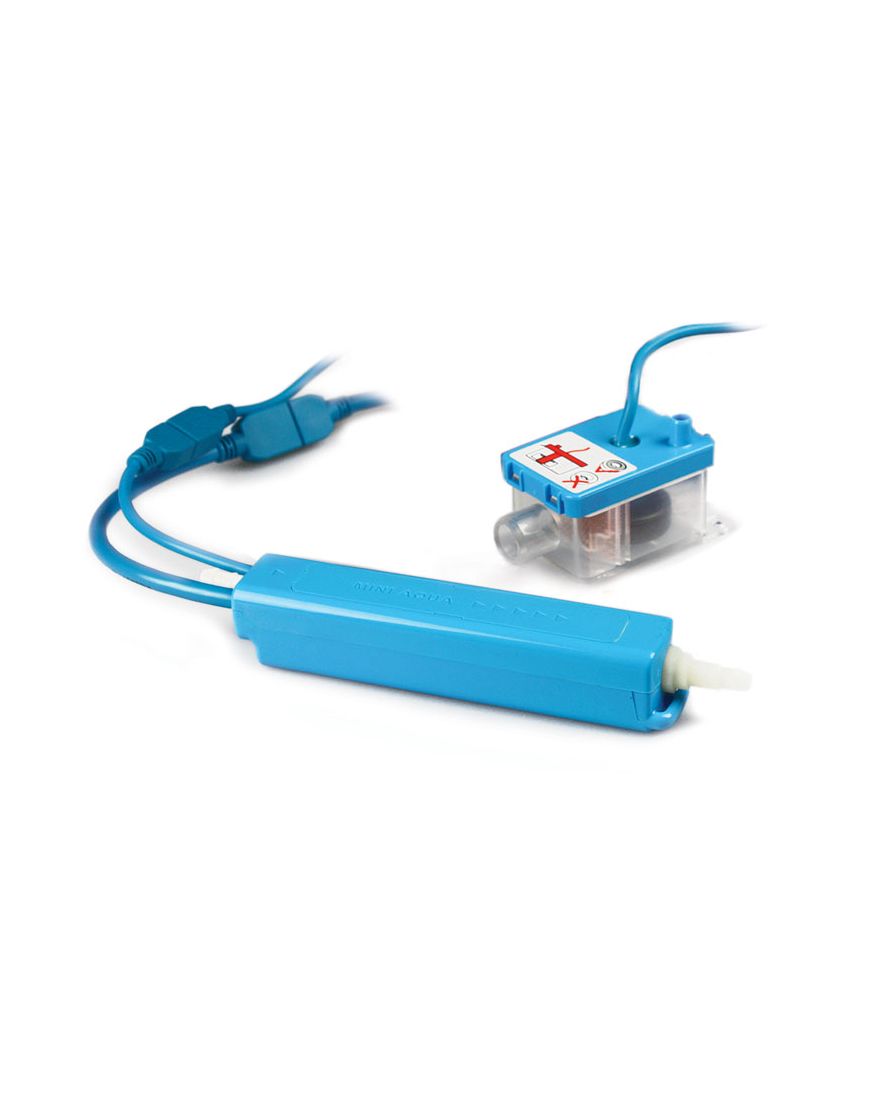

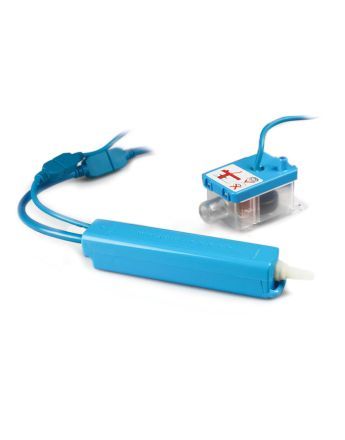

Aspen Mini Aqua Mini Pump

The world’s slimmest condensate removal pump is designed to fit where other’s can’t!

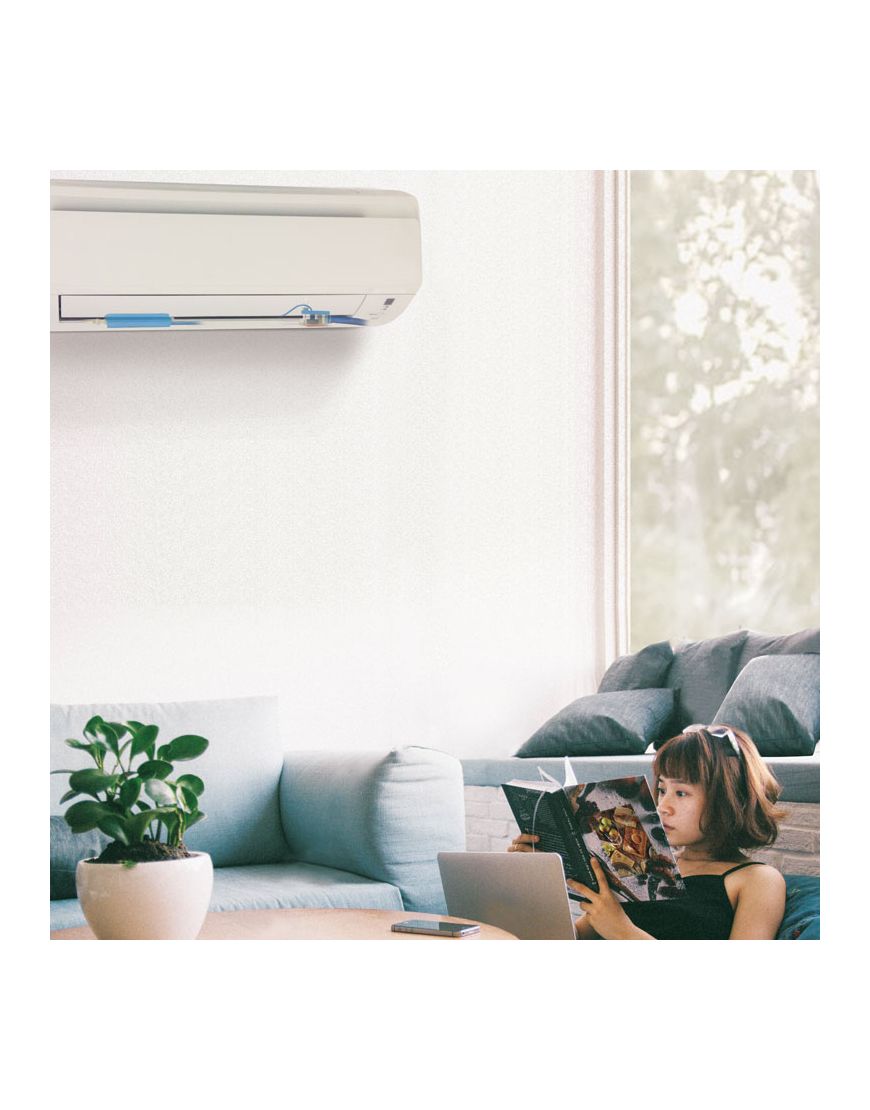

The Mini Aqua® is designed to be installed within wall mounted evaporators or in plastic conduit

By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator or conduit, condensate water can be pumped to a height of 8 metres.

Using the proven functionality of our other mini pumps, the Mini Aqua® is also incredibly slim in size. Measuring only 28mm in height and 28mm in depth, it is probably the smallest condensate pump in the world!

Specifications:

• Pump rating: 230V AC, 16W
• 1PH 50 Hz
• High level safety switch with 3A volt-free wires, and normally closed contacts
• Hall effect semi conductor level sensors
• Maximum water temperature: 40°C
• Continuously rated
• Class II appliance
• Fully potted
• Thermally protected

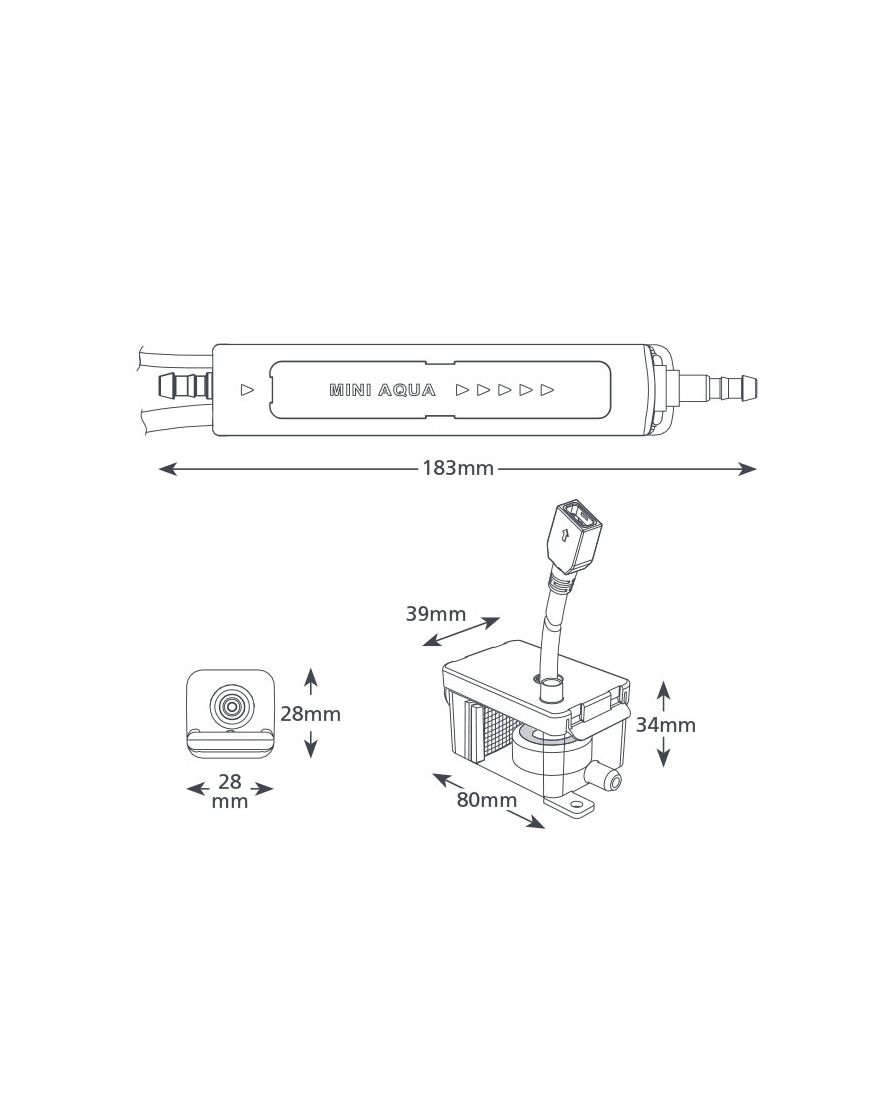

• 28mm (h) x 165mm (w) x 28mm (d)
• Weight: 321g

Performance:

• Water flow rate: 12L/h at zero head
• 10m/33ft Max. Recommended Head
• 100m Max. Horizontal Flow
• 21dB(A) @ 1m
